Hi everyone.
I’m just setting up my reloading area / desk.
I have an Ikea desk which I’ll be using to mount an RCBS Rockchucker on. The desk frame and legs are plenty strong enough to stand on (tested!)
However the top is only 20mm thick chipboard and wondering if this will be strong enough to mount the press on.
Would you:
- use as is?
- add some spare 20mm Ikea thick chipboard and double it up?
- add some inherited leftover kitchen worktop?
- any other suggestions?
Many thanks.
Keith
Ikea Desk for reloading press / any need to strengthen?
Moderator: dromia
Forum rules
All handloading data posted on Full-Bore UK from 23/2/2021 must reference the published pressure tested data it was sourced from, posts without such verification will be removed.
Any existing data without such a reference should be treated as suspect and not used.
Use reloading information posted here at your own risk. This forum (http://www.full-bore.co.uk) is not responsible for any property damage or personal injury as a consequence of using reloading data posted here, the information is individual members findings and observations only. Always verify the load data and be absolutely sure your firearm can handle the load, especially older ones. If in doubt start low and work your way up.
All handloading data posted on Full-Bore UK from 23/2/2021 must reference the published pressure tested data it was sourced from, posts without such verification will be removed.
Any existing data without such a reference should be treated as suspect and not used.
Use reloading information posted here at your own risk. This forum (http://www.full-bore.co.uk) is not responsible for any property damage or personal injury as a consequence of using reloading data posted here, the information is individual members findings and observations only. Always verify the load data and be absolutely sure your firearm can handle the load, especially older ones. If in doubt start low and work your way up.
-
Polchraine
- Posts: 6425
- Joined: Sat Nov 06, 2010 11:46 pm
- Location: Middlesex
- Contact:
Re: Ikea Desk for reloading press / any need to strengthen?
Doubling up 20mm will stil leave it flexing - unless you fully glue and screw every 150mm.
KItchen worktop assuming 38/40mm will be ideal and no need to surface fix, just some plates along teh back and sides to stop it moving around.
KItchen worktop assuming 38/40mm will be ideal and no need to surface fix, just some plates along teh back and sides to stop it moving around.
"The trouble with quotes on the internet is that it's difficult to discern whether or not they are genuine." - Abraham Lincoln
Why did kamikaze pilots wear helmets?
God loves stupid people, that is why he made so many of them.
-
dromia
- Site Admin
- Posts: 20217
- Joined: Sat Nov 06, 2010 4:57 am
- Home club or Range: The Highlands of Scotland. Cycling Proficiency 1964. Felton & District rifle club. Teesdale Pistol and Rifle club.
- Location: Sutherland and Co Durham
- Contact:
Re: Ikea Desk for reloading press / any need to strengthen?
As above.
Once you get going you will be surprised at how much play there is in benches as the press stresses in more than one direction.
If the frame is solid and preferably bolted to floor wall then a thick, solid homogenous top is necessary.
Personally I wouldn't use anything Ikea for handloading, they are just not made for that purpose.
Once you get going you will be surprised at how much play there is in benches as the press stresses in more than one direction.
If the frame is solid and preferably bolted to floor wall then a thick, solid homogenous top is necessary.
Personally I wouldn't use anything Ikea for handloading, they are just not made for that purpose.
Come on Bambi get some
Imperial Good Metric Bad
Analogue Good Digital Bad
Fecking stones
Real farmers don't need subsidies
Cow's farts matter!
For fine firearms and requisites visit
http://www.pukkabundhooks.com/
Re: Ikea Desk for reloading press / any need to strengthen?
I have my Rockchucker mounted on a 40mm kitchen worktop sat on a couple of four drawer chests from an old dressing table.. It seems to work OK.
Regards
Peter.
Regards
Peter.
-
YattonShooter
- Full-Bore UK Supporter
- Posts: 40
- Joined: Thu Jun 23, 2022 2:49 pm
- Contact:
Re: Ikea Desk for reloading press / any need to strengthen?
I used two 18mm sheets of ply; glued and screwed together and a couple of Clarke bench supports.
No flex but you may have to brace for side to side movement.
No flex but you may have to brace for side to side movement.
-
ukrifleman
- Full-Bore UK Supporter
- Posts: 755
- Joined: Thu Jun 07, 2012 7:26 pm
- Contact:
Re: Ikea Desk for reloading press / any need to strengthen?
I made a bench with some reclaimed 3"X2" timber and wooden boards, topped with an 18mm sheet of MDF to make the work surface smooth and 45mm thick.
I then bolted it to the wall for rigidity.
I then bolted it to the wall for rigidity.
-
phaedra1106
- Posts: 3428
- Joined: Wed Feb 08, 2012 9:37 pm
- Location: Just outside Sacriston (the nice bit!)
- Contact:
Re: Ikea Desk for reloading press / any need to strengthen?

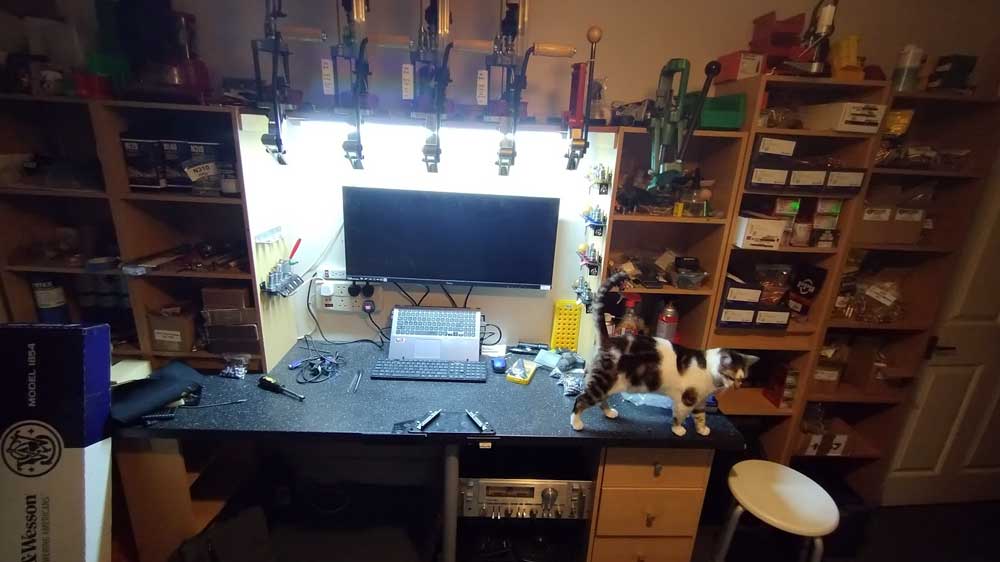

Ikea do a 70cm steel leg (Adils) for £2.50, comes in white or black. if you can manage it put one under the bench where the press sits.
https://www.ikea.com/gb/en/p/adils-leg-black-70217973/
Or stick some 38mm Ikea worktop on it!
The cat is optional
https://www.ikea.com/gb/en/p/adils-leg-black-70217973/
Or stick some 38mm Ikea worktop on it!
There's room for all Gods creatures, next to the mash and gravy :)
-
Itskeith
- Full-Bore UK Supporter
- Posts: 144
- Joined: Wed Oct 26, 2022 10:03 am
- Home club or Range: Home club
- Contact:
Re: Ikea Desk for reloading press / any need to strengthen?
Many thanks everyone.
Didn't realise it would flex in more than one direction.
Good tip about the extra support underneath.
Kitchen worksurface looks like the winner then
Didn't realise it would flex in more than one direction.
Good tip about the extra support underneath.
Kitchen worksurface looks like the winner then
